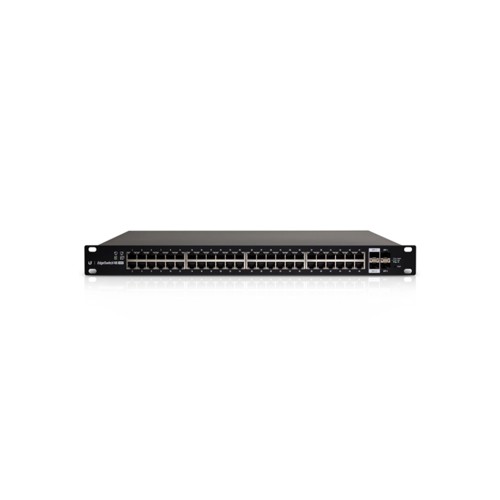

ES-48-500W 48-Port Gigabit Managed PoE Switch
The Ubiquiti EdgeSwitch ES-48-500W is a high-performance Layer 2+ managed PoE switch designed for large-scale IP surveillance systems, enterprise networks, and high-density PoE deployments. It features 48×Gigabit PoE+ ports and 4 uplink ports (2×1G SFP + 2×10G SFP+), delivering powerful switching performance with a substantial 500W PoE budget.
High Power PoE Capability
With a total 500W PoE budget and support for both IEEE 802.3af/at and 24V Passive PoE, this switch can power a large number of high-power devices such as PTZ cameras, access points, and other PoE equipment simultaneously.
10G High-Speed Uplink
Equipped with 2×10G SFP+ ports along with 2×1G SFP, it provides ultra-fast backbone connectivity and high switching capacity of 140 Gbps for demanding network environments.
Advanced Management
The EdgeMAX interface offers comprehensive management features including VLANs, QoS, Link Aggregation, IGMP Snooping, ACLs, and full CLI access for advanced configuration and monitoring.
Robust Enterprise Design
The switch features a sturdy 1U rackmount metal chassis, internal 500W power supply, and active cooling fans for reliable 24/7 operation.
The ES-48-500W is an excellent solution for large surveillance projects, enterprise networks, and environments requiring high port density and strong PoE power.
