SOL-6357-V-SF

SOL-6357-V-SF Click to zoom
Promotion
Solitine / Cat-6

SOL-6357-V-SF

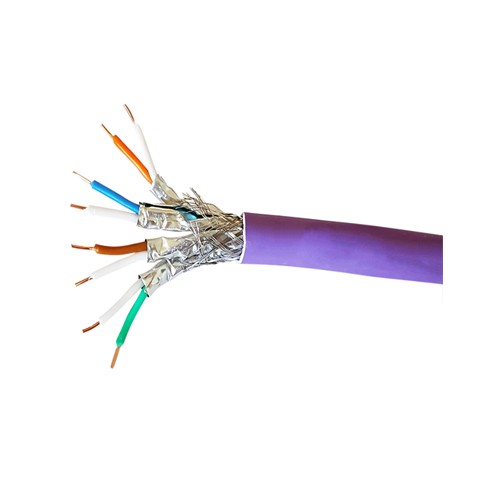

SOLITINE SFTP CAT6 Solid Cable LSZH

Brand Solitine
Category Cat-6
Model SOL-6357-V-SF
Availability In Stock
Structure
  • 23Awg solid bare copper conductor
  • PE insulation
  • 4pair, FR PVC/LSZH jacket
  • Rosh complaint
  • Synthetical separation foil: polyester
  • 110% coverage aluminum/polyster
  • 40% coverage tinned copper braiding
  • Drain wire
  • Frequency:250Mhz
  • Tranmission: 155Mbps
  • Industrial standard: International ISO/IEC-1180 USA ANSI/ANATEL, TIA/EIA-568b.2-2001, UI CE approved
Applications
  • ISDN
  • 10Base-T(IEEE802.3)
  • 100Base-T(IEEE802.3u)
  • Atm 155Mbps
  • 100Vg-anylan(IEEE802.12)
  • Token ring(IEEE802.5)
  • TP-PDM(ANSI x3t9.5)
Product performance
  • Linear resistance: Max.95 Ω/km
  • Mutual capacity(nom.):Max.5200pf/100m
  • Unbalance capacity Max (p/p at 1 khz):1500pf/1km
  • Characteristic impedance: 100(+or-)15 Ω
  • Velocity of propagation (f>1mhz):72% of C
