General
| Switch Type |
Unmanaged |
| Layer |
L2 |
| Form Factor |
Desktop / Wall Mount |
Ports
| Total Ports |
16 |
| RJ45 Ports |
16× 10/100 Mbps |
| Gigabit Ports |
No |
| SFP Ports |
No |
| Uplink Ports |
No |
| Console Port |
No |
Performance
| Switching Capacity |
3.2 Gbps |
| Forwarding Rate |
2.38 Mpps |
| MAC Address Table |
4K |
| Jumbo Frame |
Not Supported |
Features
| VLAN |
No |
| QoS |
No |
| Link Aggregation |
No |
| IGMP Snooping |
No |
| Port Isolation |
No |
| Storm Control |
No |
Security
| Port Security |
No |
| ACL |
No |
| 802.1X |
No |
| Loop Protection |
No |
Management
| Web UI |
No |
| SNMP |
No |
| CLI |
No |
| Plug & Play |
Yes |
Power
| Power Supply |
External Adapter (100–240V AC) |
| Power Consumption |
Not Specified |
| Lightning Protection |
Not Specified |
Physical
| Dimensions |
218 × 135 × 41.6 mm |
| Weight |
Not Specified |
| Mounting |
Desktop / Wall |
| Fan |
No |
Environment
| Operating Temperature |
0°C ~ 45°C |
| Humidity |
10% ~ 90% |
Standards
| IEEE Standards |
802.3, 802.3u, 802.3x |
Warranty & Support
| Warranty |
1 Year Official Warranty |

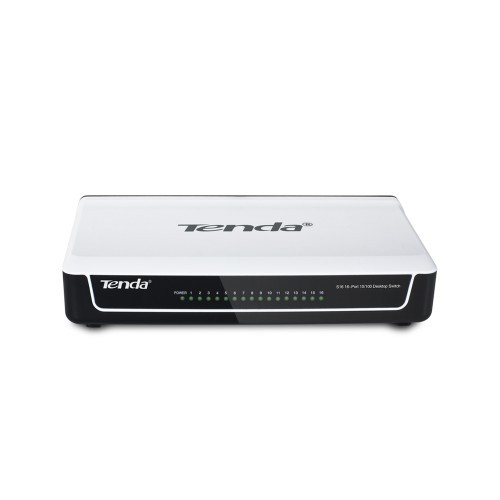

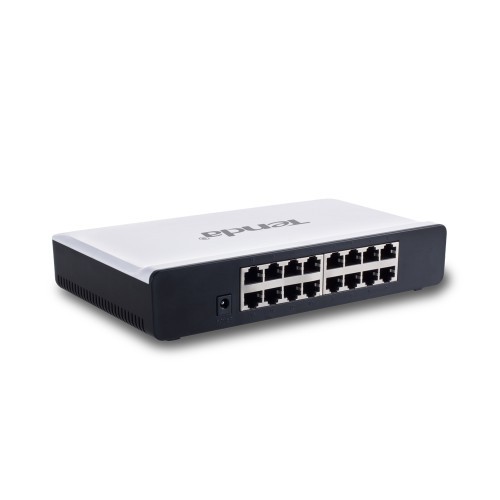

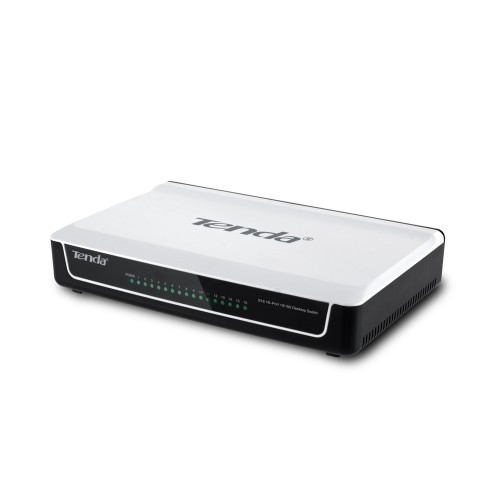

Tenda S16 is a reliable 16-port 10/100 Mbps Fast Ethernet unmanaged switch designed for simple and stable network expansion in homes, offices, and small business environments. It features 16 auto-negotiation RJ45 ports with Auto MDI/MDIX support, allowing easy plug-and-play installation without any configuration. With a switching capacity of 3.2 Gbps and a packet forwarding rate of 2.38 Mpps, it ensures smooth and efficient data transmission across multiple connected devices. The switch supports IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards for stable performance and flow control. Built with a compact plastic housing, it supports both desktop and wall mounting for flexible installation. With 4K MAC address table capacity, low power consumption, and strong ESD protection, the Tenda S16 delivers a cost-effective and dependable networking solution for expanding wired connectivity in any environment.
